  > 제품안내 > Rapier Loom Beam


Model Type Dimension Remark
Type Length Width Diameter Ø Material

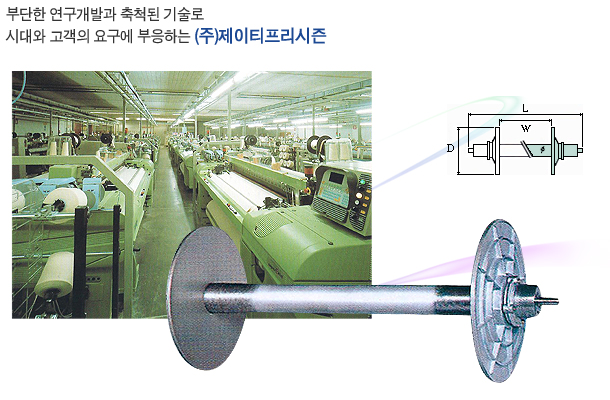

Rapier Loom Beam
for Ssang Yong
150T

170T

190T


220T


240T


280T
1782

2082

2195

2282

2582

2675

3095
1678

1978

2178

2478

2520

2820

3220
510


580


660


800


920
177(A/L)



164(A/L)


120(A/L)


138(S/T)
Beam Pipe :
Aluminium(A6061-T6)



Stkm


Beam Flange :
Aluminium (AC4C-T6)
Rapier Loom Beam
for Hanjin
Rapier Loom Beam
for Picanol
Rapier Loom Beam
for Ishikawa
Rapier Loom Beam
for Somet
Rapier Loom Beam
for Vamatex
Rapier Loom Beam
for Shinkwang



Symbol Chemical Composition (%) Tensile Strength Classification
Cu Si Mg Zn Fe Mn Ni Ti Po Sn Cr AL ㎏㎣ %
AC4C 0.25
max		 6.5~
7.5		 0.2~
0.45		 0.35
max		 0.55
max		 0.35
max		 0.10
max		 0.21
max		 0.10
max		 0.05
max		 0.10
max		 remainder 16
max		 8
max		 F
Heat Treatment T6
