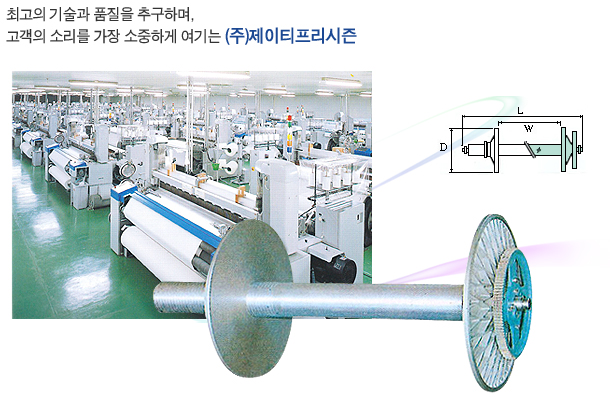

  > 제품안내 > Water / Air Jet Loom Beam


Model Type Dimension Remark
Type Length Width Diameter Ø Material
Water / Air
Jet Loom Beam
for Tsudakoma
150T
170T
190T
1849
2049
2249
1500
1700
1900
800
800
800(1000)
177
177
177(214)

Beam Pipe :
Aluminium (A6061-T6)

Beam Flange :
Aluminium (AC4C-T6)




Water / Air
Jet Loom Beam
for nissan
150T
170T
190T
1840/1874
2040/2074
2240/2274
1500
1700
1900
800
800
800
177
177
177
Air
Jet Loom Beam
for Toyoda
150T
170T
190T
1930
2130
2330
1500
1700
1900
800
800
800
177
177
177



Symbol Chemical Composition (%) Tensile Strength Classification
Cu Si Mg Zn Fe Mn Ni Ti Po Sn Cr AL ㎏㎣ %
AC4C 0.25
max
6.5~
7.5
0.2~
0.45
0.35
max
0.55
max
0.35
max
0.10
max
0.21
max
0.10
max
0.05
max
0.10
max
remainder 16
max
8
max
F
Heat Treatment T6
