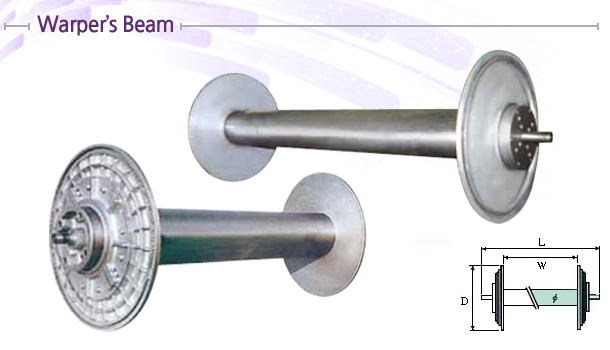

  > 제품안내 > Warper's Beam


Model Type Dimension Remark
Length Width Diameter(Ø) Barrel(Ø) Material
Tsudakoma
Warper Beam
2300 1780 800 214 Beam Barrel :
Aluminium (A6061-T6) (Stpg)
920(1000) 300(315)
Kawamoto
Warper Beam
2100 1627 660
800
920
214
300
Beam Barrel :
Aluminium (A6061-T6) (Stpg)
2300 1827
2400 1927 1000 (315)
Benninger
Warper Beam
2070 1800 800
1000
315 Beam Barrel : Stpg

Model Type Dimension Remark
Length Width Diameter(Ø) Barrel(Ø) Material
170W 2049 1700 800 177
(214)
Beam Barrel :
Aluminium Alloy
(A6061-T6)
190W 2249 1900 914
210W 2449 2100 (1000)
230W 2649 2300 (1050)

Model Type Dimension Remark
Length Width Diameter(Ø) Barrel(Ø) Material
Delta -
Omni
Air Jet
T190 2265 1985 805
914
1000
1100
177
(214)
Beam Barrel :
Aluminium (A6061-T6)
Stpg 200A
T220 2565 2285
T250 2865 2585
Gtm - A
Rapier
T190 2424 1920
T220 2724 2220
T240 2924 2520

Model Type Dimension Remark
Length Width Diameter(Ø) Barrel(Ø) Material
170W 2130 1700 800
930
(1000)
177
(214)
Beam Barrel :
Aluminium Alloy
(A6061-T6)
190W 2330 1900
210W 2530 2100
230W 2730 2300

Model Type Dimension Remark
Length Width Diameter(Ø) Barrel(Ø) Material
280T 1740 1740 800
814
940
1000
214 Beam Barrel : Stpg 200A
340T 2040 2040
360T 2140 2140

Model Type Dimension Remark
Length Diameter(Ø) Barrel(Ø) Material
1900 2048 800
940
1000
214 Beam Barrel : Stpg 200A
2000 2148
2200 2348
2600 2748
2900 3148
3600 3948
