> PRODUCTS > Warper Beam for Sizing

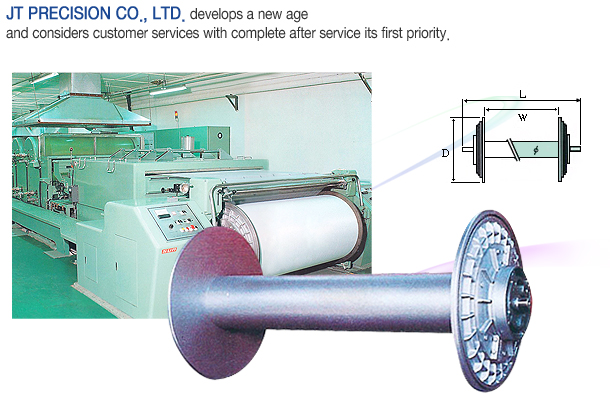

Model Type
Dimension
Remark
Length
Width
Diameter
Ø
Material
Warper Beam
for Tsudakoma
1915
1920
2170
1395
1400
1700
1780
600
660
800
920
1000
300(A/L)
221(A/L)
167(A/L)
315(S/T)
215(S/T)
164(S/T)
Beam Pipe :
Aluminium (A6061-T6)
Stkm
Beam Flange :
Aluminium (AC4C-T6)
Kawamoto
Warper Beam
Benninger
Warper Beam
Symbol
Chemical Composition (%)
Tensile Strength
Classification
Cu
Si
Mg
Zn
Fe
Mn
Ni
Ti
Po
Sn
Cr
AL
㎏㎣
%
AC4C
0.25
max
6.5~
7.5
0.2~
0.45
0.35
max
0.55
max
0.35
max
0.10
max
0.21
max
0.10
max
0.05
max
0.10
max
remainder
16
max
8
max
F
Heat Treatment
T6
